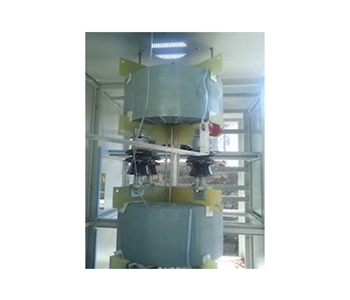

Presently, Sahara Transformers Manufactures Air-Core Reactors upto 11KV Class. Windings are made with Class 'F' Copper or Aluminum. Class 'H' can be used upon Request.
Standards: Sahara Transformers Manufactures Air-Core Reactors as per IS 5553-4-5, 1989 & IEC 60076-6: 2007.
Specifications
| Rated Voltage | 3.3/6.6/11 KV, 50 Hz |
|---|---|
| System Voltage | 3.6/7.2/12 KV |
| Rated Current | As Specified by the Customer |
| Detuning Factor | 0.2% to 6% |
| Overvoltage Factor | 1.05 Un Continuous 11 Un for 8 hrs |
| Over Current Factor | 1.3 In Continuous |
| Insulation Class | 'F' |
| Impulse Withstand | 40 KV for 33 KV Reactors 60 KV for 6.6 KV Reactors 75 KV for 11 KV Reactors |
| Temperature Withstand | - 10°C to + 50°C |
